中温铸造蜡厂家-专注研究生产中温蜡厂家
中温铸造蜡：AT996

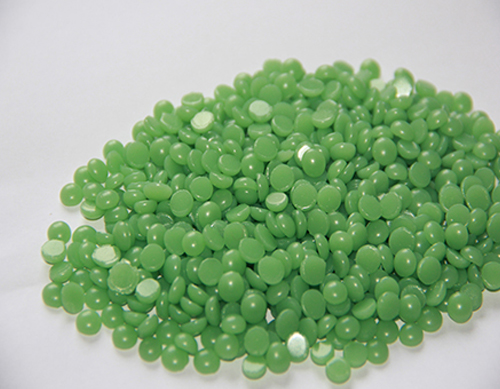

JIUDING Casting Wax AT996 is formulated with a proven neutral no filler for liquid injection. The wax is green in color. JIUDING AT996 offers a wide liquid injection range with very little cavitation in the thick sections of the patterns.
“九鼎”牌AT996是一种含有中性非填料的绿色模型蜡，具有压蜡范围广，大型模蜡模没有气穴的高档模型蜡。
JIUDING AT996 reproduces excellent surface detail with good rigidity and dimensional stability and exhibits excellent flow characteristics. AT996 is suitable for commercial and parts, fit for high requirement parts.
它具有优良的表面光洁度，适中的硬度，尺寸稳定和非常好的流动性。AT996应用商业五金，高尔夫球头，薄壁零件及航空航天领域。
This no filled wax can be used for both ferrous and non-ferrous castings because of minimum residue on burnout.
由于它是一种脱蜡后极低残留的非填充蜡，适合于一般的铁铸和合金铸造。
|
SPECIFICATION（主要性能标准） |
|
|
Ring & Ball Softening Point(环球软化点) |
163℉/72.9℃ |
|
Penetration 450 GM Load（针入度） |
16DMM |
|
Specific Gravity（比重） |
0.955 |
|
Ash Content(灰份) |
0.02% MAX |
|
Drop Melt Point(点熔点) |
75.5─84.5℃ |
|
L.S(收缩率) |
0.7---0.9 |
|
RECOMMENDED LIQUID INJECTION (液态/糊状压蜡参数) |
|
|
Maintain temperature(保温温度) |
85.0℃/65.0℃ |
|
Temperature(射蜡温度) |
67.5℃/62.0℃ |
|
Nozzle Temperature(射嘴温度) |
70℃/65℃ |
|
Fragile Cored Parts(陶瓷蕊温度) |
77℃/75℃ |
常见问题及处理方法：
收缩率大，适当降低射蜡温度.
表面麻点，蜡水分没处理干净，或管道含杂质.
表面桔皮，适当提高保温和射蜡温度.
取模粘接，降低冷却水温度.
